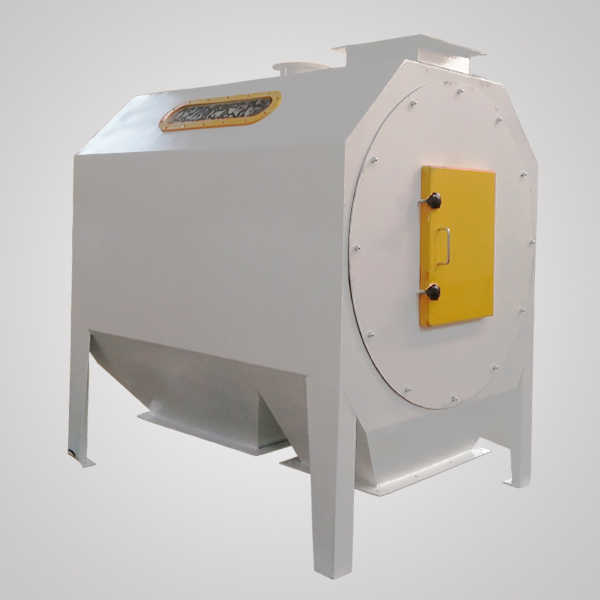

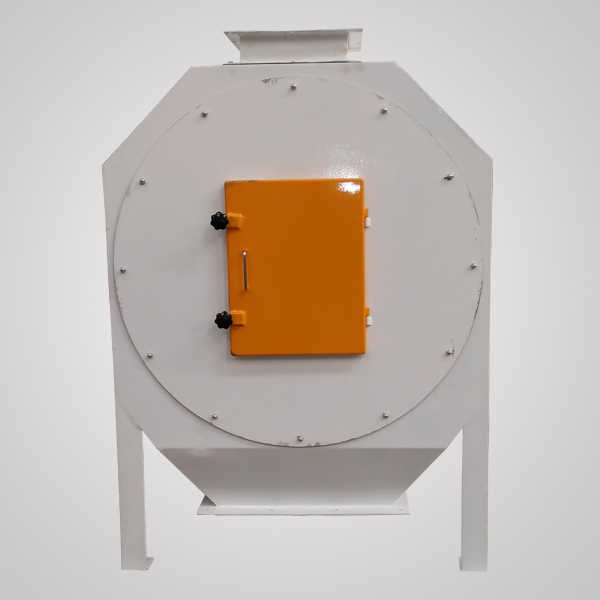

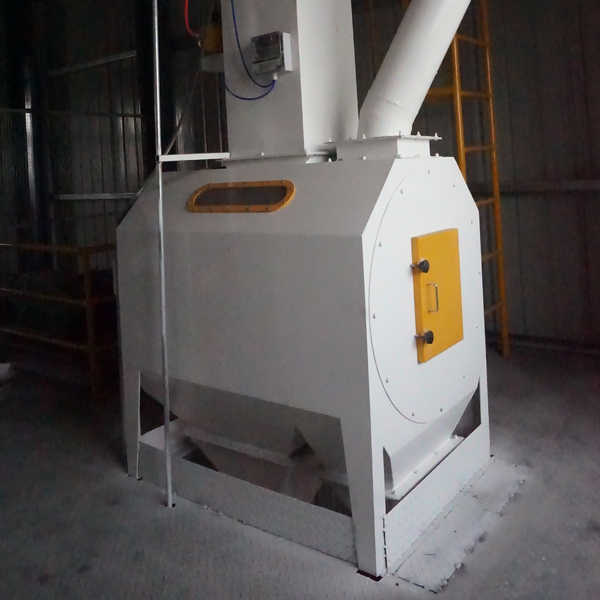

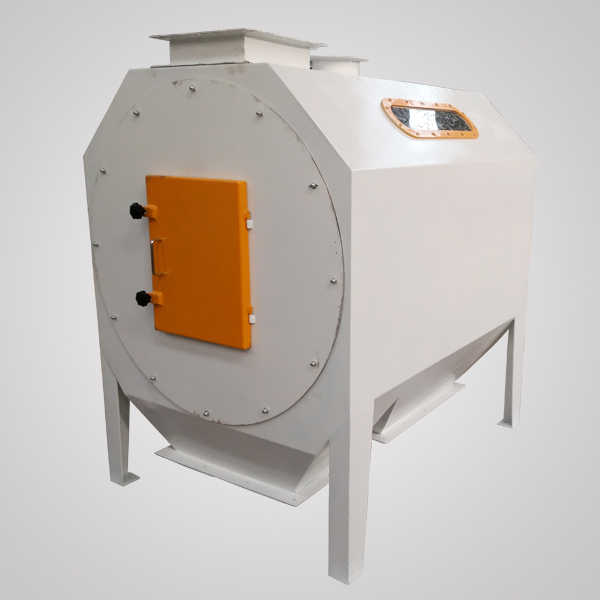

SCY series Animal Feed Granular Pre-cleaner
The Animal Feed Granular Pre-cleaner is compact in structure, the novel in design, fully enclosed frame, good in sealing and dustproof performance, and the material slides and jumps on the screen surface. The machine can screen different materials, so the output and screening efficiency can be adjusted. The screen adopts a special tension device, which is easy to tension and adjust. Suitable for raw material cleaning in feed processing, grain storage, and other industries. It can clean up the wheat straw, corn leaves, corn cobs, straw, stones, hemp rope, and other debris.
Performance advantages:
1)、Good performance for cleaning and impurity remove the impurity removal efficiency is ≥99%, and the waste does not contain with the qualified finished product;
2)、A horizontal arm sieve cylinder is used. The sieve cylinder is divided into the feeding section and the discharge screening section, and different sieve hole combinations are selected respectively so that the ideal screening efficiency can be obtained.
3)、The reverse feeding mode is adopted, and the discharge section of the screen cylinder is provided with a spiral, which increases the actual screening length, achieves sufficient sieving effect, and effectively prevents impurities from being contained in the net material.
4)、An internal sifter and an external brush are used to clean the structure. The fibrous impurities and the oranges are discharged in a group shape through the guiding spiral during the sieving, and the automatic cleaning is reliably performed.
5)、The power is small, the output is high, the operation is stable and reliable, the screen change is convenient to maintain, the structure is compact, and space is small.
6)、It is widely used in the primary cleaning process of raw materials such as feeding, oil, flour, rice mill, granary, and other food and chemical industries.
7)、There are monitor windows in the side and top of the machine, the operator could easily observe the running condition.
| Model | SCY63 | SCY80 | SCY100 |
| Capacity(t/h) | 20-40 | 40-60 | 60-80 |
| Power(kw) | 0.75 | 0.75 | 1.5 |
