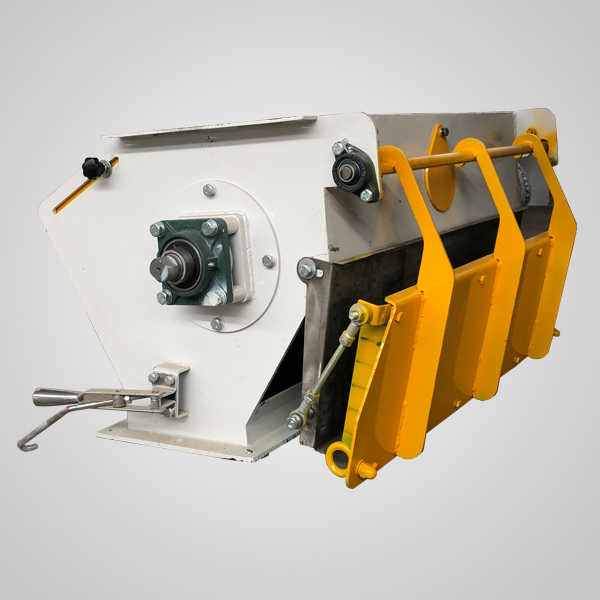

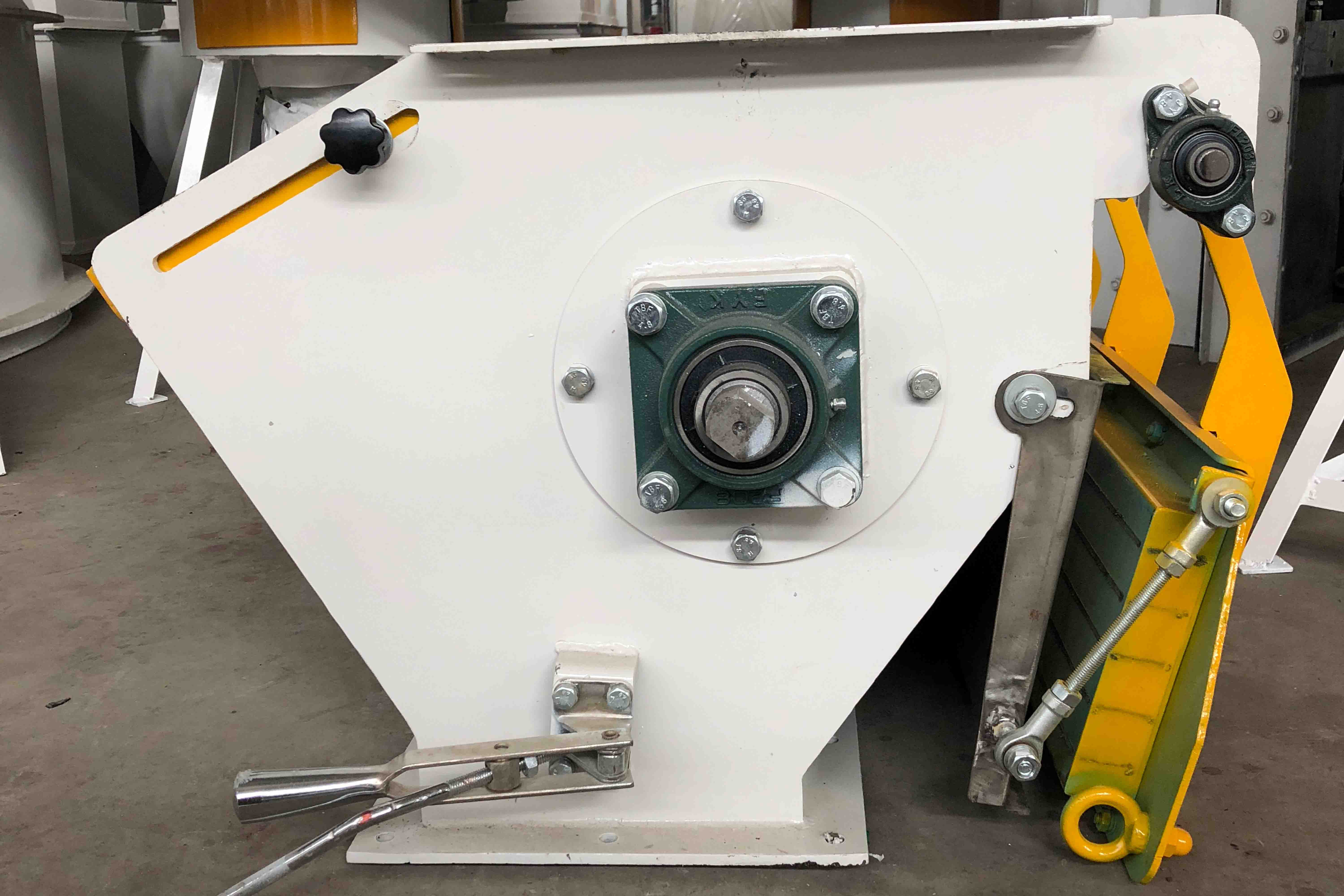

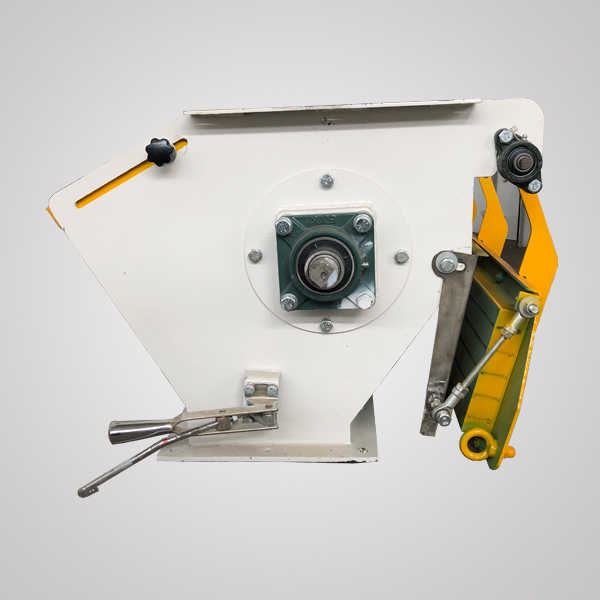

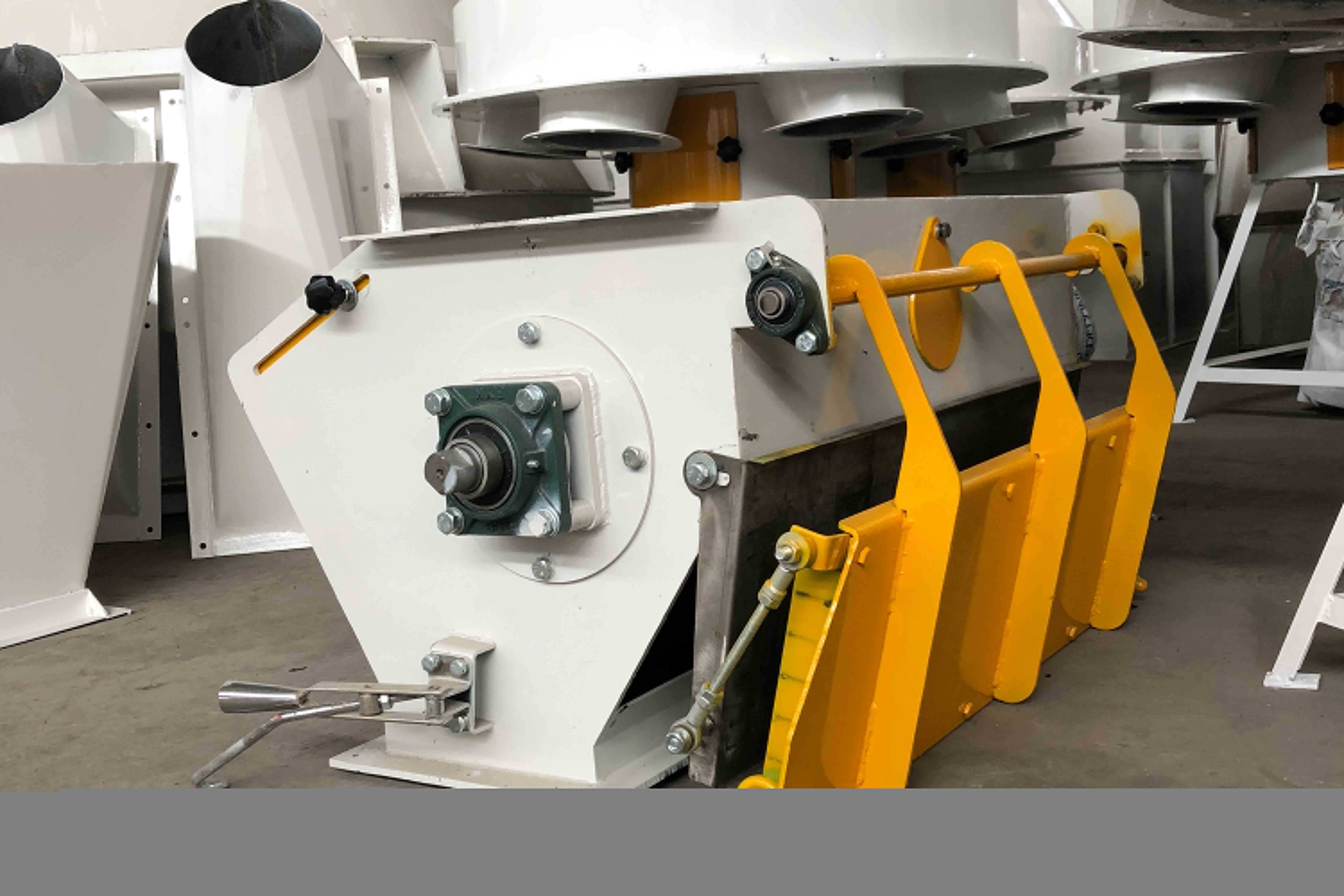

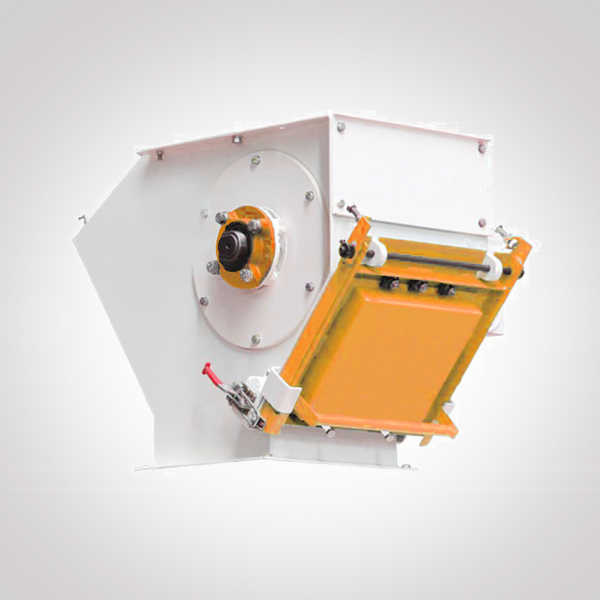

impeller feeder
impeller feeder kind of excellent feeding device, the impeller feeder is suitable for any kinds of materials, even the powder, granulated, mixed and special materials. In addition, It can control the feeding speed automatic and easy operation, which improves the working condition and energy saving.
The impeller feeder is widely used in all kinds of pellet making plant, powder feeding device, such as for hammer mill feeding device.It is a small unit but indispensable part of the whole feed processing line.
working principle:
The raw material enters the impeller feeder through the inlet and is conveyed upward by the impeller feeder. It then gets into the self-cleaning magnets and finally enters the hammer mill. The impeller feeder consists of impeller, gear motor, self-cleaning magnets, air adjustment door, etc.
Features and advantages:

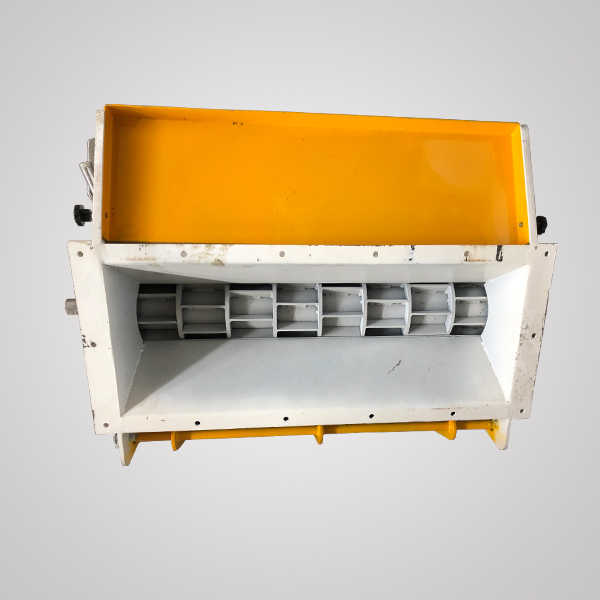

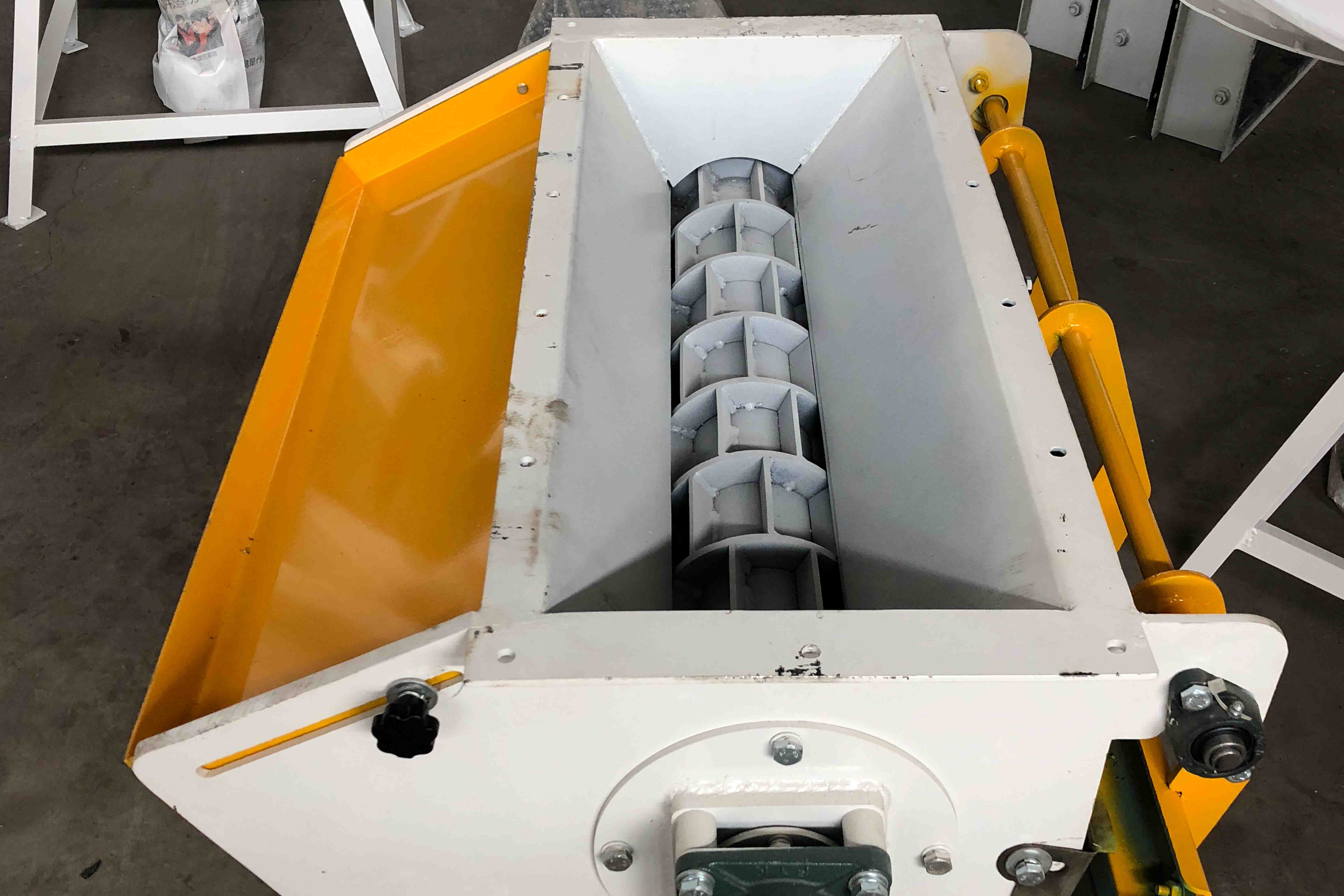

1)、Adopt intercross impellers for uniform feeding & distributing.
2)、With self-clean magnetic separator for iron-removal & keep smoonthly running.
3)、Uniform axial direction of hammer mill is which prolonged serice time of spares.

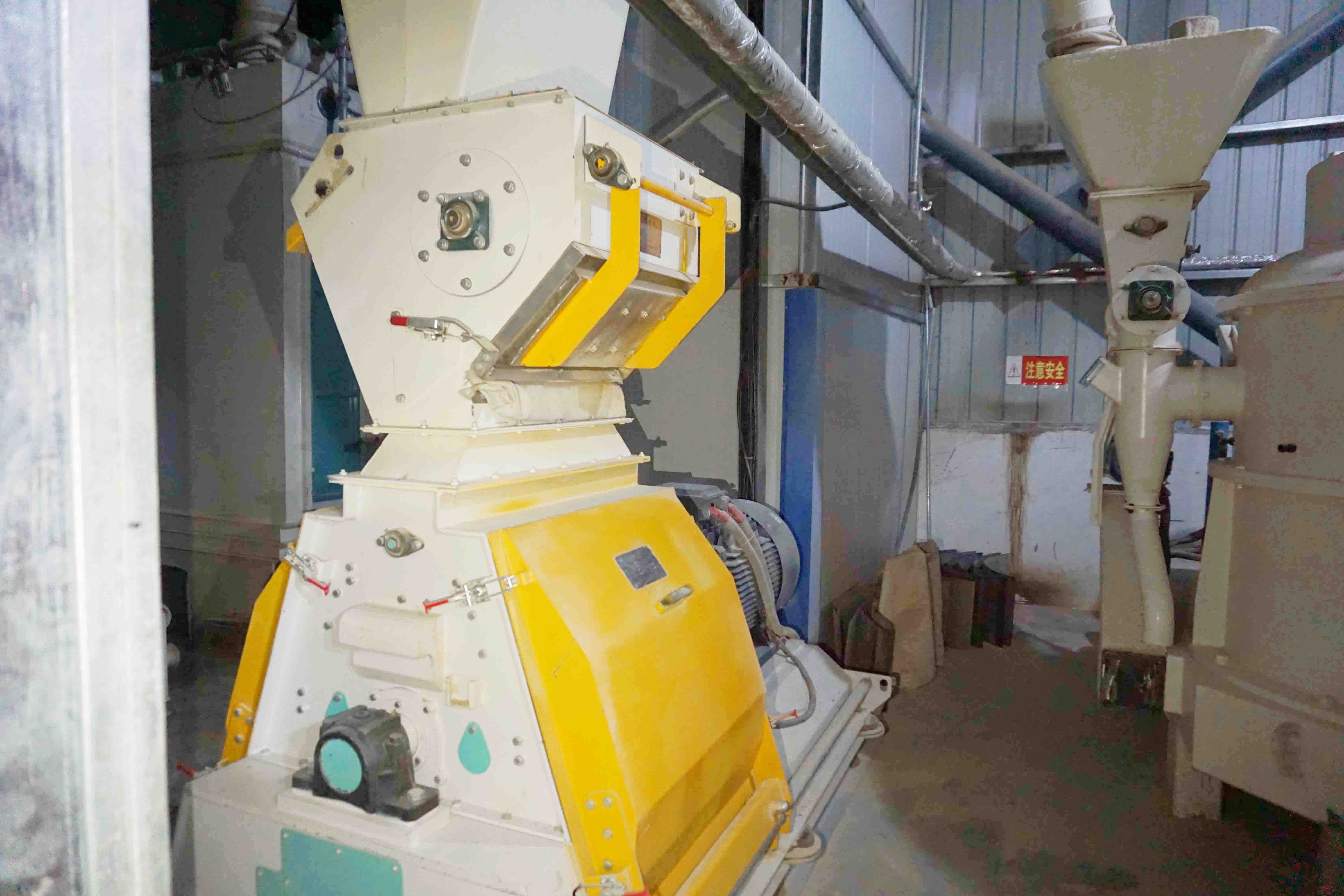

4)、Completely combined with the hammer mill to satisfy the whole line of feeding process.
5)、RPM can be adjusted by FC Inverter easily.
impeller feeder：
impeller feeder：
|
Model |
SWLY20x36 |
SWLY20x40 |
SWLY20x60 |
SWLY20x80 |
SWLY20x100 |
|
Output(t/h) |
2-7 |
5-12 |
6-25 |
10-30 |
15-50 |
|
Power(kw) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
