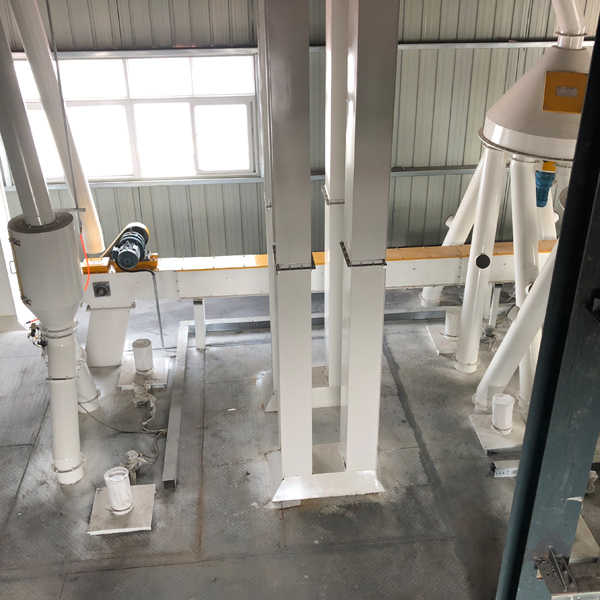

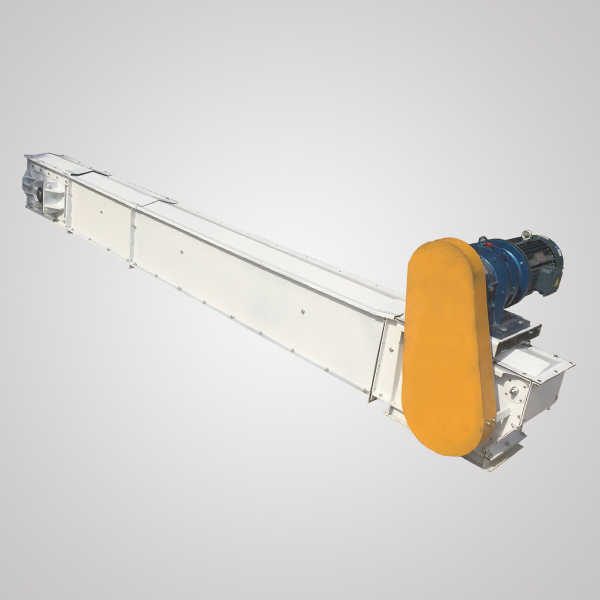

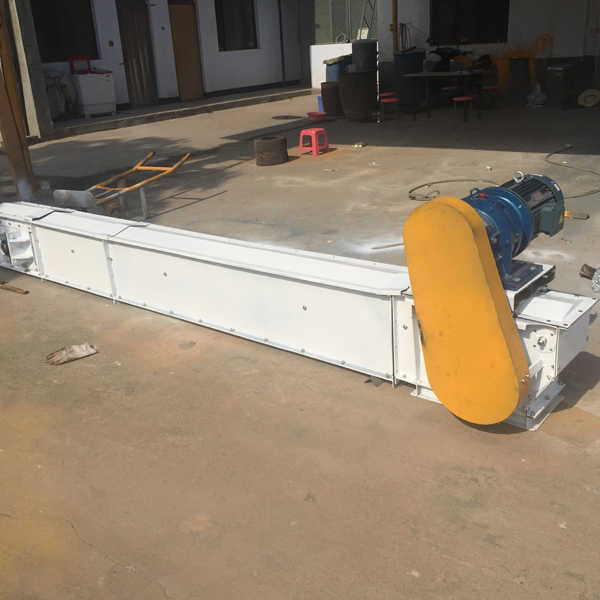

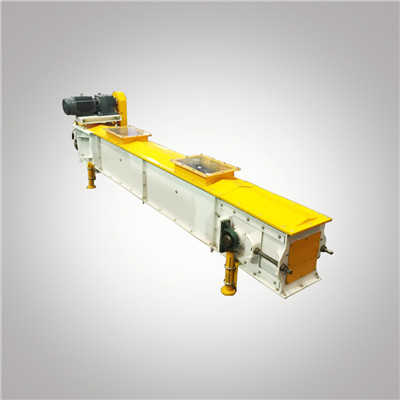

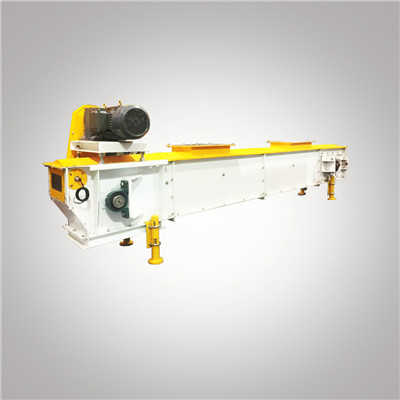

Scrapper Conveyor
Scraper Conveyor can transfer pellet or aggregate product at full rate over a distance that may include a level change and protecting the transported material from the weather. Scraper chain conveyor is ideal for carrying bulk non-abrasive materials, horizontally or up a small incline, these conveyors feature a closed box.
working principle:

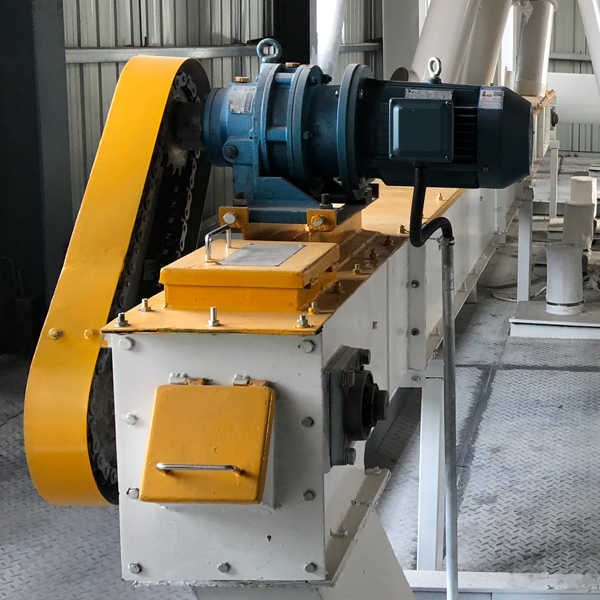

The open chute is used as a receiving member for coal, sone or other material, and the scraper is fixed on the chain (constituting the scraper chain) as a traction member. When the head drive is activated, the sprocket on the driven head shaft rotates, causing the scraper chain to circulate and move the animal material along the chute until the machine head is unloaded. The scraper chain bypasses the sprocket for a stepless closed cycle operation to complete the material transport.
Features and advantages:
1)、No spillage or dust problems
2)、Mixing and blending of material conveyed.
3)、Hot, sticky or abrasive material easily handled.
4)、Conveying angles up to 45°.
5)、Suitable even for submerged operation
6)、Facilitates bunker extraction and proportioning distribution.
7)、Low headroom requirements
8)、Conveyors built exactly to customer requirements
Scrapper Conveyor:
|
Model |
TGSS16 |
TGSS20 |
TGSS25 |
TGSS32 |
TGSS40 |
|
Capacity（t/h） |
15-20 |
25-35 |
35-45 |
55-70 |
90-140 |
